Refrigerator Door Panel Stamping Tooling Design 1500 X 1100 X 550mm Stamping Press Tool

Brand Name : IDO

Model Number : Refrigerator door panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator door panel

Part Material : SGCC

Mould Type : Stage mold

Mould Size : 1500*1100*550mm

Mould Weight : 2T

Milling Speed : Slow Speed

After-sales Service : 12 Months

Smartness : One-Key Changeover

Contact Now

Steel Stamping Dies Stage Die for Refrigerator Door Panel Mould Size 1500×1100×550mm

Description:

The Steel Stamping Dies Stage Die for Refrigerator Door Panel with mould size 1500×1100×550mm is engineered for precise and efficient sheet metal forming. Made from high-quality steel, this stage die ensures consistent shaping of refrigerator door panel components, maintaining tight tolerances and reliable performance. Its robust design and ample mould size make it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.

Quick Detail:

Cycle: 6–14 seconds, depending on product type.
Repairs can be completed in 30 minutes; tools swapped in 15 minutes.
Punch edges sharpened after 300,000–500,000 cycles.
Die movement software-controlled.
One press table and tool set sufficient for cabinet production, lowering costs.
Only sub-dies removed for maintenance.
Single tool set produces multiple models; program-controlled changeover.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

Refrigerator Door Panel Stamping Tooling Design 1500 X 1100 X 550mm Stamping Press Tool

Product Tags:

heat treatmentstamping tooling design

EDM stamping tooling design

1500 x 1100 x 550mm stamping press tool

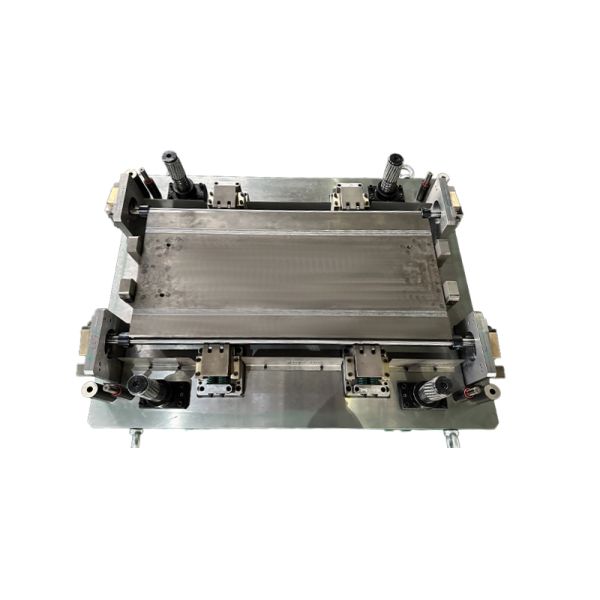

Refrigerator Door Panel Stamping Tooling Design 1500 X 1100 X 550mm Stamping Press Tool Images
