Refrigerator Back Panel Sheet Metal Embossing Dies 1400 X 1100mm Sheet Metal Stamping Tool

Brand Name : IDO

Model Number : refrigerator back panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator back panel

Part Material : DC52D

Mould Type : Stage mold

Mould Size : 1400*1100*600mm

Mould Weight : 3T

Production Capacity : 200 Sets/Year

Technics : Cutting Die

Manufacturing Technology : Computer Technology

Contact Now

Steel Stamping Dies Stage Die for Refrigerator Back Panel Mould Size 1400×1100×600mm

Description:

The Steel Stamping Dies Stage Die for Refrigerator Back Panel with mould size 1400×1100×600mm is engineered for precise and efficient sheet metal forming. Made from high-quality steel, this stage die ensures consistent shaping of refrigerator back panel components, maintaining tight tolerances and reliable performance. Its robust design and generous mould size make it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.

Quick Detail:

Cycle duration: 6–14s depending on product.
Repair time: 30 minutes; tool change: 15 minutes.
Punch edges sharpen every 300,000–500,000 shots.
Die movements are software-controlled.
Only one press table and tool set needed for cabinet production, reducing cost.
Maintenance requires dismantling sub-dies only.
One tool set produces several models; tool change via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

Refrigerator Back Panel Sheet Metal Embossing Dies 1400 X 1100mm Sheet Metal Stamping Tool

Product Tags:

Refrigerator sheet metal embossing dies

sheet metal embossing dies 1400 x 1100mm

sheet metal stamping tool 3T

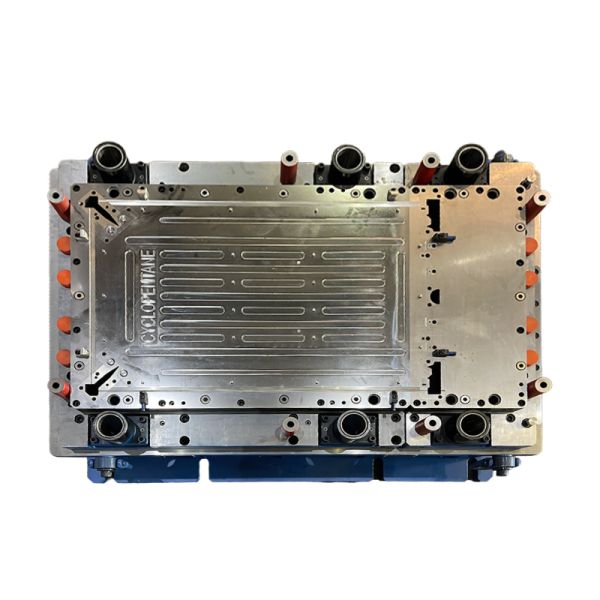

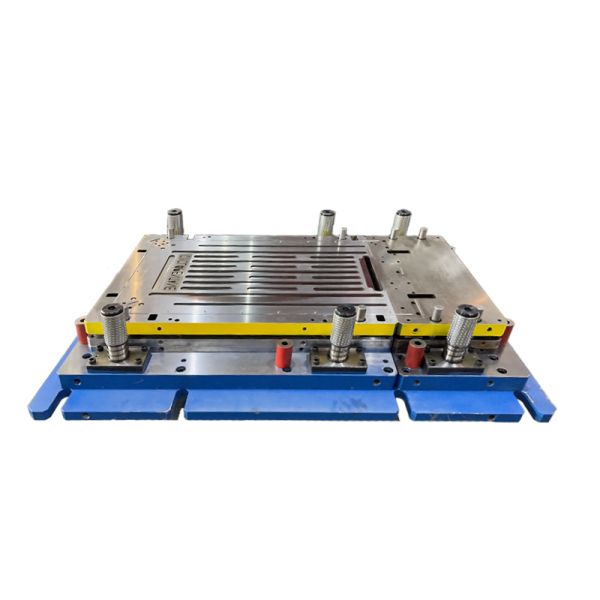

Refrigerator Back Panel Sheet Metal Embossing Dies 1400 X 1100mm Sheet Metal Stamping Tool Images
