Dishwasher Tub Wrapper Steel Stamping Kit 600mm Mould Die Cast Stamp

Brand Name : IDO

Model Number : dishwasher tub wrapper

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Dishwasher Tub Wrapper

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 2100*1200*600mm

Mould Weight : 10T

Mould Life : 2 million shots

Surface Treatment : TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts

Precision Machining : CNC/ surface grinding machine/ wire cutting/ EDM

Contact Now

Dishwasher Tub Wrapper Stage Die With 2100×1200×600mm Mould Steel Stamping Die

Description:

The Dishwasher Tub Wrapper Stage Die with 2100×1200×600mm Mould Steel Stamping Die is engineered for high-precision, heavy-duty sheet metal forming. Made from durable steel, this stage die ensures consistent shaping of dishwasher tub wrapper components, maintaining tight tolerances and reliable performance. Its large mould size and robust design make it an ideal solution for appliance manufacturers seeking efficient, long-lasting, and high-quality stamping tooling.

Quick Detail:

  • Cycle time ranges from 6–14 seconds, depending on product characteristics.
  • Repairs can be done in 30 minutes; tool change in 15 minutes.
  • Punch edges require sharpening after 300,000–500,000 shots.
  • Each die movement is software-controlled.
  • Cabinet production requires just one press table and tool set, lowering equipment cost.
  • Maintenance involves only sub-die removal.
  • One tool set produces several models; program enables tool changeover.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

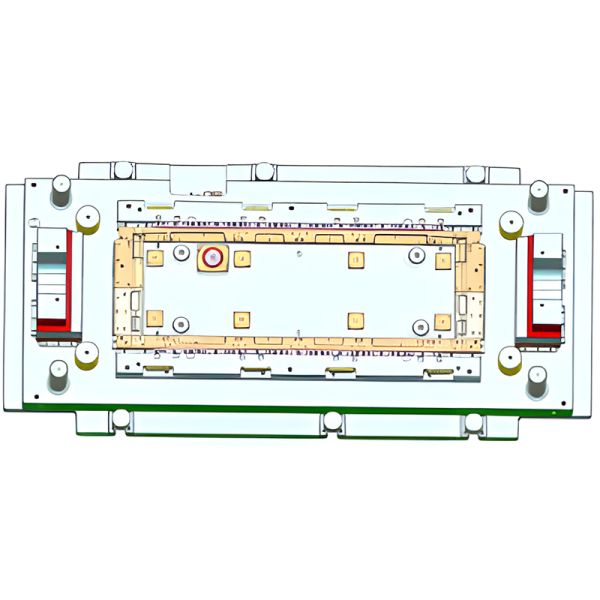

Dishwasher Tub Wrapper Steel Stamping Kit 600mm Mould Die Cast Stamp

Dishwasher Tub Wrapper Steel Stamping Kit 600mm Mould Die Cast Stamp
