DC53D PCM Steel Stamping Dies 1400mm Washing Machine Front Panel Metal Die Press

Brand Name : IDO

Model Number : washing machine front panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine front panel

Part Material : DC53D-PCM

Mould Type : Stage mold

Mould Size : 1400*1100*560mm

Mould Weight : 4T

Sheet Thickness : 0.4mm, 0.5mm, 0.6mm

Compatibility : Yes

Transport Package : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Contact Now

Steel Stamping Die Stage Die For Washing Machine Front Panel With Quick Die Change

Description:

The Steel Stamping Die Stage Die for Washing Machine Front Panel with Quick Die Change is engineered for high-precision and efficient sheet metal forming. Made from durable steel, this stage die ensures accurate shaping of washing machine front panels while maintaining tight tolerances and consistent performance. Its quick die change feature significantly reduces downtime, enhancing production efficiency and making it an ideal solution for appliance manufacturers seeking reliable, fast, and high-quality stamping tooling.

Quick Detail:

  • Cycle time: 6–14s, depending on product characteristics.
  • Fast repair within 30 minutes; tool change within 15 minutes.
  • Punch edges sharpen after 300,000–500,000 strokes.
  • Software controls die movements.
  • Cabinet production requires only one press table and tool set, reducing equipment cost.
  • Only sub-dies need dismantling for maintenance.
  • One tool set can produce multiple models; changeover via program.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

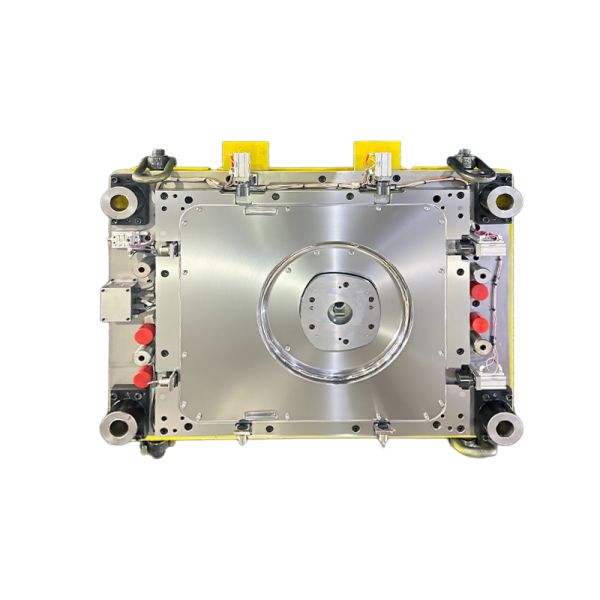

DC53D PCM Steel Stamping Dies 1400mm Washing Machine Front Panel Metal Die Press

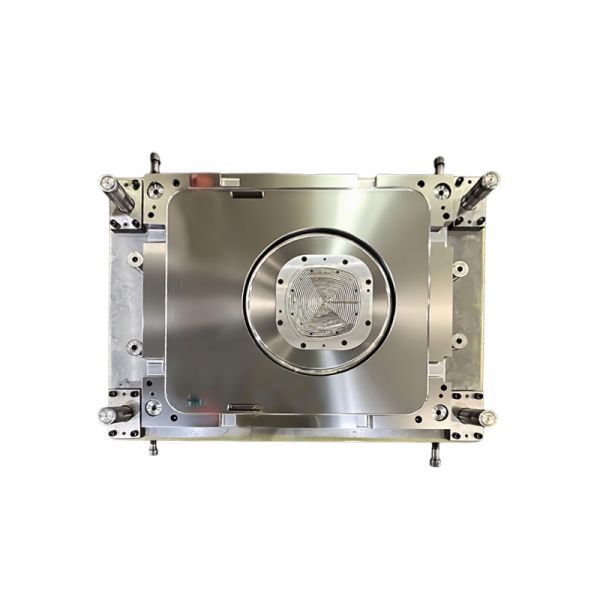

DC53D PCM Steel Stamping Dies 1400mm Washing Machine Front Panel Metal Die Press
