DC04 Steel Stamping Die Stage Dies And Stamping 850x550x345Mm For Microwave Oven Baffle

Brand Name : IDO

Model Number : microwave oven baffle

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Microwave oven baffle

Part Material : DC04

Mould Type : Stage mold

Mould Size : 850*550*345mm

Mould Weight : 0.4T

Driving Motor Type : Permanent Magnet

Milling Speed : Slow Speed

Tolerance : ±0.003mm

Contact Now

Steel Stamping Die DC04 Stage Die 850×550×345 Mm For Microwave Oven Baffle

Description:

The Metal Stamping Die for Fabricating Microwave Oven Baffle Components is designed for precision and consistent performance. It enables accurate shaping of baffle parts, ensuring smooth production cycles and uniform quality. Built for durability and reliable operation, this die supports efficient fabrication processes and high-quality output in household appliance manufacturing.

Quick Detail:

Cycle: 6–14 seconds based on product characteristics.
Quick repair within 30 minutes; tool change within 15 minutes.
Punch edges sharpen after 300k–500k shots.
Each die movement controlled via software.
Cabinet production requires only one press table and tool set, reducing cost.
Maintenance only needs sub-die removal.
One tool set produces several models; changeover via program.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

DC04 Steel Stamping Die Stage Dies And Stamping 850x550x345Mm For Microwave Oven Baffle

Product Tags:

Microwave Oven Steel Stamping Dies

Steel Stamping Dies 850x550x345Mm

DC04 dies and stamping

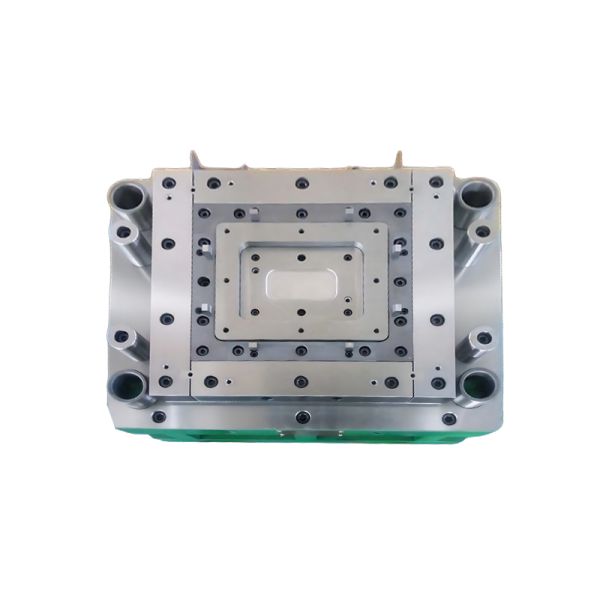

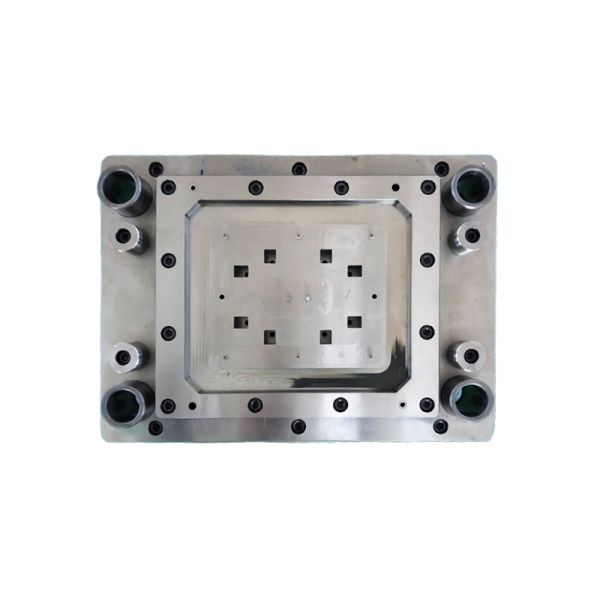

DC04 Steel Stamping Die Stage Dies And Stamping 850x550x345Mm For Microwave Oven Baffle Images
