1000×1000×550mm Steel Stamping Dies Dishwasher Outer Door Steel Stage Die ISO9001

Brand Name : IDO

Model Number : dishwasher outer door

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Dishwasher outer door

Part Material : DC51D

Mould Type : Stage mold

Mould Size : 1000*1000*550mm

Mould Weight : 2T

Measuring Instruments : CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.

Drawing Format : DWG, STP, STEP, X_T, IGES, PDF

Design Software : Auto CAD, UG, Solidworks

Contact Now

1000×1000×550mm Stage Die for Dishwasher Outer Door Steel Stamping Dies

Description:

The 1000×1000×550mm Stage Die for Dishwasher Outer Door Steel Stamping Dies is designed for precise and efficient sheet metal forming. Constructed from high-quality steel, this stage die ensures accurate shaping of dishwasher outer door components with tight tolerances and reliable performance. Its compact yet robust design supports heavy-duty production, making it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.

Quick Detail:

  • Cycle: 6–14s per product.
  • Quick repair within 30 minutes; fast tool change within 15 minutes.
  • Punch edge sharpening needed after 300k–500k strokes.
  • Software controls die movements.
  • Only one press table and tool set required for cabinets, reducing costs.
  • Sub-dies dismantled individually for maintenance.
  • One tool set can produce multiple models; changeover managed by program.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

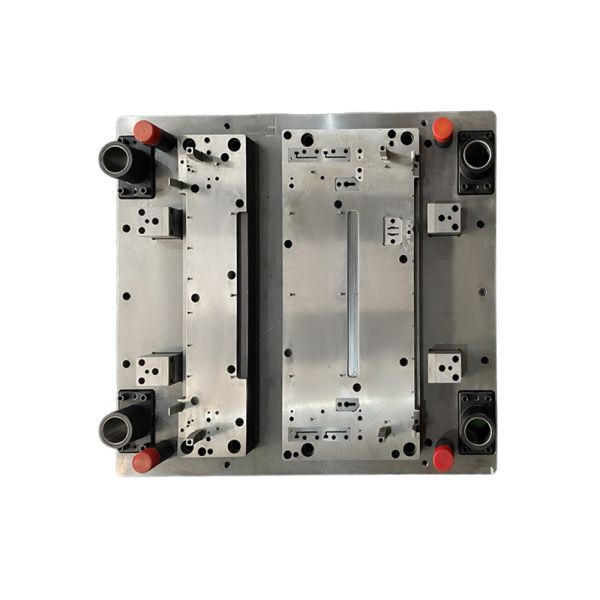

1000×1000×550mm Steel Stamping Dies Dishwasher Outer Door Steel Stage Die ISO9001

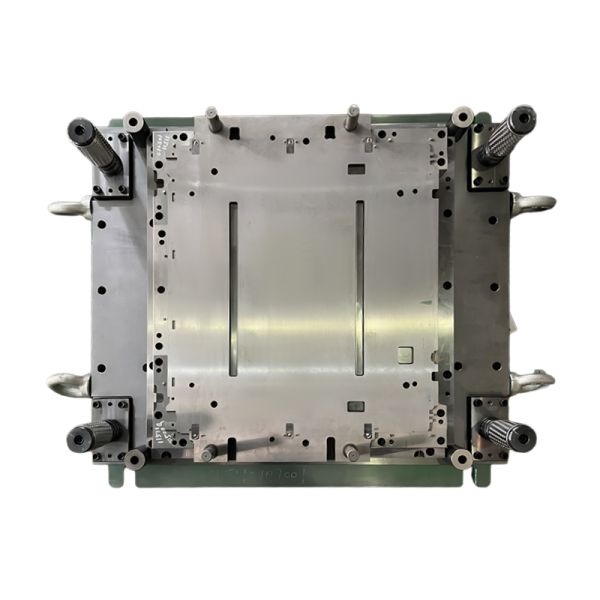

1000×1000×550mm Steel Stamping Dies Dishwasher Outer Door Steel Stage Die ISO9001
