Washing Machine Rear Cover Metal Stamping Mold 3T 1200MM Progressive Die Stamping

Brand Name : IDO

Model Number : washing machine rear cover

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine rear cover

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 1200*950*560mm

Mould Weight : 3T

Specification : Non-standard

Origin : China

Production Capacity : 200 Sets/Year

Contact Now

Stage Mold Stamping Mold For White Household Appliance Washing Machine Rear Cover

Description:

Our Stage Die Mold Stamping Mold for White Household Appliance Washing Machine Rear Cover is engineered for high-precision sheet metal forming, ensuring consistent quality in washing machine rear cover production. Designed for durability and stable performance, this mold accommodates various metal materials commonly used in white household appliances. It enhances production efficiency, maintains dimensional accuracy, and provides reliable long-term operation for modern manufacturing lines.

Quick Detail:

Cycle per piece ranges from 6 to 14 seconds as defined by product typ
e. Maintenance can be completed within half an hour; tooling swap takes just 15 minutes.
Punching edges should be re-sharpened after 300k–500k operations.
Die motion is precisely controlled by software.
Producing cabinets requires only a single press table and tool set, lowering investment.
During repair, only the sub-die is detached.
One tool set supports different models with program-based changeovers.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

Washing Machine Rear Cover Metal Stamping Mold 3T 1200MM Progressive Die Stamping

Product Tags:

Metal Stamping Mold 3T

Metal Stamping Mold 1200MM

1200MM progressive die stamping

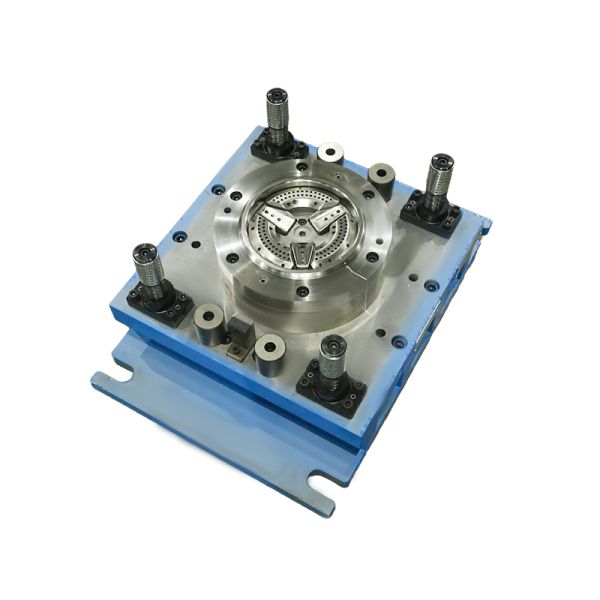

Washing Machine Rear Cover Metal Stamping Mold 3T 1200MM Progressive Die Stamping Images
