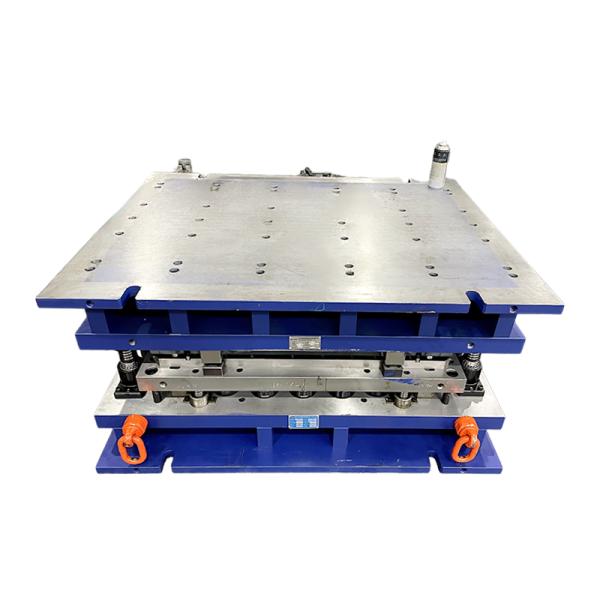

1300mm Stamping Mould Washing Machine Side Panel Hot Stamping Mold

Brand Name : IDO

Model Number : washing machine side panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine side panel

Part Material : DC52D-PCM

Mould Type : Stage mold

Mould Size : 1300*700*560mm

Mould Weight : 3T

Technics : Cutting Die

HS Code : 8207300090

Manufacturing Technology : Computer Technology

Contact Now

Metal Stamping Mold For Stage Mold Of White Household Appliance Washing Machine Side Panel

Description:

Our Metal Stamping Mold for Stage Mold of White Household Appliance Washing Machine Side Panel is designed for precise and efficient sheet metal forming of washing machine side panels. Engineered for high durability and stable performance, this mold ensures accurate dimensions, consistent quality, and long service life. Suitable for various metal sheet materials used in white household appliances, it helps manufacturers optimize production efficiency and maintain reliable output on modern assembly lines.

Quick Detail:

  • The cycle varies between 6–14s depending on the product.
  • Repairs finish within 30 minutes, tooling changes in 15 minutes.
  • Punch edges are sharpened after 300,000–500,000 shots.
  • Each die’s movement is software-driven.
  • Cabinet manufacturing needs only one press table and tool set, cutting costs.
  • Maintenance involves removing only the sub-die.
  • One set of tools makes several models, with changeover achieved through software programs.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

1300mm Stamping Mould Washing Machine Side Panel Hot Stamping Mold

1300mm Stamping Mould Washing Machine Side Panel Hot Stamping Mold
