1300MM 2T Refrigerator Cabinet Bottom Metal Stamping Mold Stage Mold 500k Cycles

Brand Name : IDO

Model Number : refrigerator cabinet bottom

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator cabinet bottom

Part Material : DC51D

Mould Type : Stage mold

Mould Size : 1300*1000*600mm

Mould Weight : 2T

Punch Tonnage : 200T

Processing Method : Punching and Shearing Mould

Technics : Cutting Die

Contact Now

Metal Stamping Mold Stage Mold Used In White Household Appliance Refrigerator Cabinet Bottom

Description:

Our Metal Stamping Mold Stage Mold Used in White Household Appliance Refrigerator Cabinet Bottom is engineered for high-precision forming of refrigerator cabinet bottom components. Designed for durability and consistent performance, this mold ensures accurate dimensions, stable production cycles, and long service life. Suitable for various sheet metal materials used in white household appliances, it helps manufacturers enhance production efficiency, maintain product quality, and support reliable large-scale manufacturing operations.

Quick Detail:

  • Cycle runs 6–14s as per product.
  • Maintenance finishes in 30 min; tool swap in 15 min.
  • Punch edges sharpened at 300k–500k cycles.
  • Software directs each die’s action.
  • One press table + tool set reduce cabinet production cost.
  • Only sub-die removed during repair.
  • One tool set for different models with program changeover.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

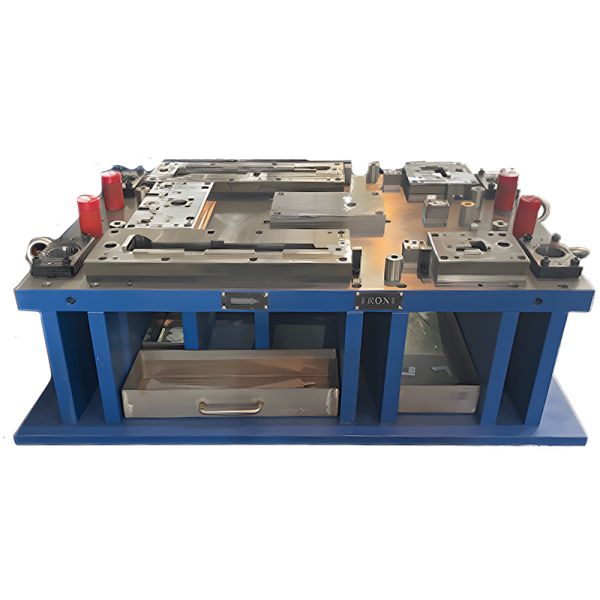

1300MM 2T Refrigerator Cabinet Bottom Metal Stamping Mold Stage Mold 500k Cycles

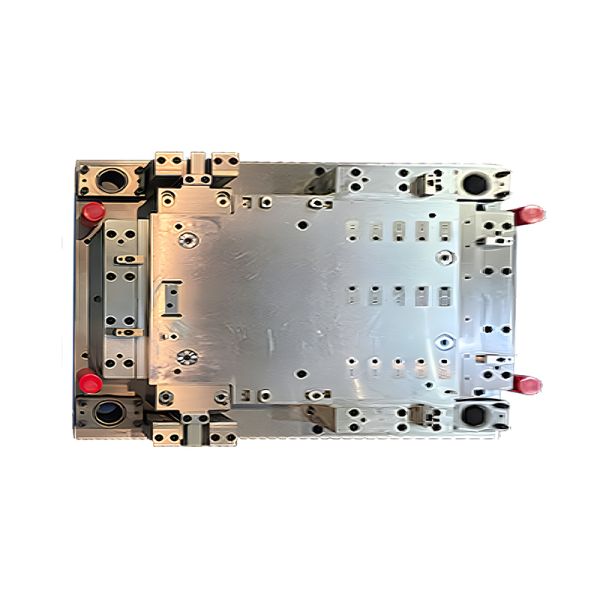

1300MM 2T Refrigerator Cabinet Bottom Metal Stamping Mold Stage Mold 500k Cycles
