200 Sets/Year Refrigerator Stamping Die Progressive Stamping Tool OEM

Brand Name : IDO

Model Number : refrigerator compressor traverse

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator compressor traverse

Part Material : DC52D

Mould Type : Stage mold

Mould Size : 950*550*450mm

Mould Weight : 1T

Punch Tonnage : 250T

Smartness : One-Key Changeover

Mold Cavity Technology : CNC Milling

Contact Now

Refrigerator Stamping Die Refrigerator Compressor Traverse Stage Die With 200 Sets/Year Production Capacity

Description:

Our specialized refrigerator stamping die is engineered for the high-volume production of refrigerator compressor traverses. This stage die is designed for high-precision forming and cutting, with a proven annual output capacity of up to 200 sets. Built for durability and efficiency, this tooling ensures consistent, high-quality results, helping you meet demanding production schedules and maintain a competitive edge.

Quick Detail:

  • Lifespan: Our dies are built with high-grade materials to achieve a certified life cycle of 1 million shots or more.

  • Accuracy: We guarantee a repeatable part tolerance of +/- 0.003 mm to ensure consistent quality.

  • Punch Tonnage: Our dies are rated for specific press tonnages, such as 300T or 500T, to ensure optimal performance.

  • Maintenance: The design features modular components, reducing average maintenance time to under 4 hours.

Specifications:

Mould/Tool Type
Stage tool/mould/die
Production Application
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base
SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance
±0.003mm
Hardness
Upon request
Surface Treatment
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining
CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format
DWG, STP, STEP, X_T, IGES, PDF
Design Software
Auto CAD, UG, Solidworks
Trade terms
FOB (Shanghai)
Mould Lead time
Generally 6~8 weeks (as per actual situation)

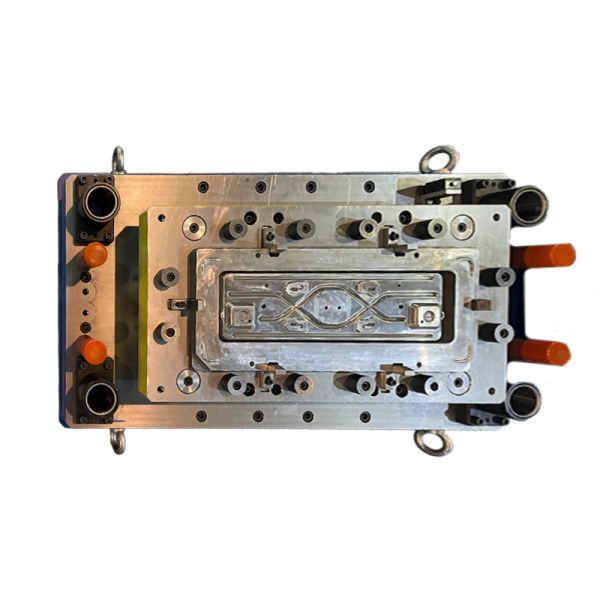

200 Sets/Year Refrigerator Stamping Die Progressive Stamping Tool OEM

200 Sets/Year Refrigerator Stamping Die Progressive Stamping Tool OEM
